DS-CLAMP-1000DC
|
Type
|
Flux gate sensor
|
|
Current Range
|
1000A DC or ACrms
|
|
Sensitivity
|
2mV/A
|
|
Bandwidth
|
DC to 20kHz
|
|
TEDS
|
Fully supported
|
|
Conductor Position Sensitivity⁷
|
Max. ±0.2% of reading
|
|
Zero Offset (+25°C)
|
Max. ±50mA
|
|
Error due Earth Magnetic Field⁶
|
Max. 150mA
|
|
Temp. Coefficient
|
±0.01% /°C
|

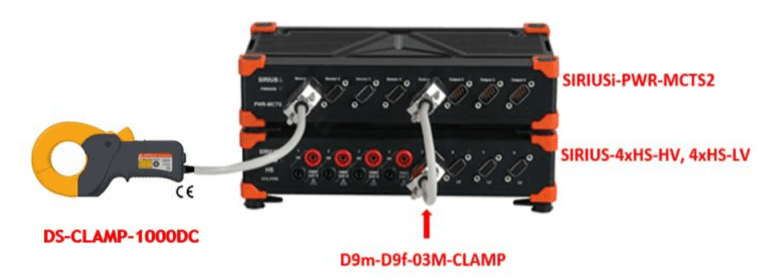

Connection
Accuracy⁷
| Amplitude | Phase Error | |
|---|---|---|
|
DC
|
±0.3% rdg. ±200mA
|
–
|
|
to 100 Hz
|
±0.3% rdg. ±100mA
|
±0.1°
|
|
100 – 500 Hz
|
±0.5% rdg. ±200mA
|
±0.2°
|
|
500 Hz – 1 kHz
|
±1.0% rdg. ±200mA
|
±0.5°
|
|
1 kHz – 5 kHz
|
±2.0% rdg. ±200mA
|
±1.5°
|
|
5 kHz – 10 kHz
|
±5.0% rdg. ±500mA
|
±2°
|
|
10 kHz – 20 kHz
|
±30% rdg. ±1000mA
|
±10°
|
|
20 kHz – 50 kHz
|
±30% rdg. ±1000mA
|
±10°
|
|
50 kHz – 100 kHz
|
±30% rdg. ±1000mA
|
±10°
|
|
100 kHz – 200 kHz
|
–
|
–
|
|
200 kHz – 300 kHz
|
–
|
–
|
|
300 kHz – 500 kHz
|
–
|
–
|
General
|
Dimensions [mm]
|
238×116×35
|
|
Max. Conductor Size
|
50mm
|
|
Power Supply
|
±11V to ±15V
|
|
Current Consumption
|
Max. 7VA
|
|
Operating Environment
|
Indoors, Pollution Degree II, altitude up to 2000m
|
|
Operating Temp.
|
-40°C to +85°C
|
|
Operating Humidity
|
up to 80% (not condensing)
|
|
Safety Standards
|
EN61010-2-032:2012
|
|
EMC Standards
|
EN61326-1:2013
|
|
Rohs
|
–
|
