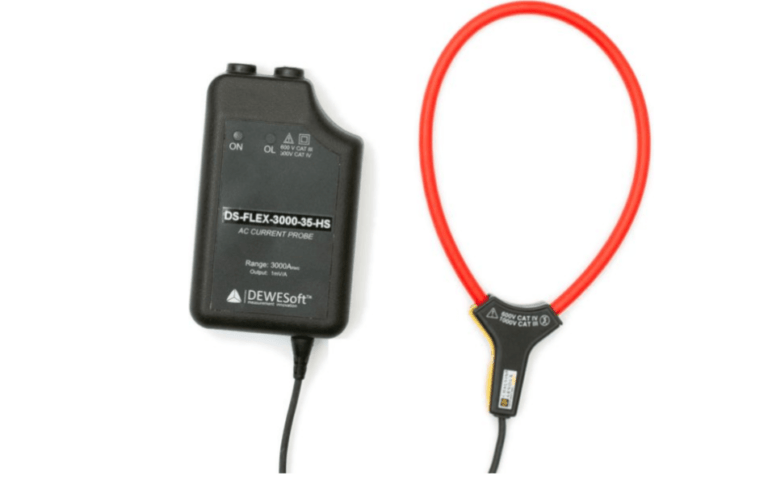

DS-FLEX-3000-35-HS
|
Type
|
Rogowsky
|
|
Current Range
|
3000A ACrms
|
|
Sensitivity
|
10mV/A
|
|
Accuracy (+25°C)
|
≤ 1 %
|
|
Phase Error
|
≤ 1.0 deg
|
|
Bandwidth
|
5Hz to 1MHz
|
|
TEDS
|
full supported
|
|
Noise
|
≤ 0.04A rms
|
|
Temp. Coefficient
|
≤ 0.5% / 10°C
|
Connection
General
|
Dimensions [mm]
|
140×64×28
|
|
Coil Length
|
350mm
|
|
Coil Diameter
|
100mm
|
|
Power Supply
|
+9V
|
|
Operating Temp.
|
-10°C to +55°C
|
|
Operating Humidity
|
up to 90% (not condensing)
|
|
Safety Standards
|
EN60529 EN61010-2 EN61010-2-032:2012
|
|
EMC Standards
|
EN61326-1:2013
|
|
Safety
|
CAT III 1000V
|
